SÄ°EMENS 3KC Tipi Manuel Transfer Åžalteri, 3 kutuplu, Soldan tahrikli,boy 3, 200A

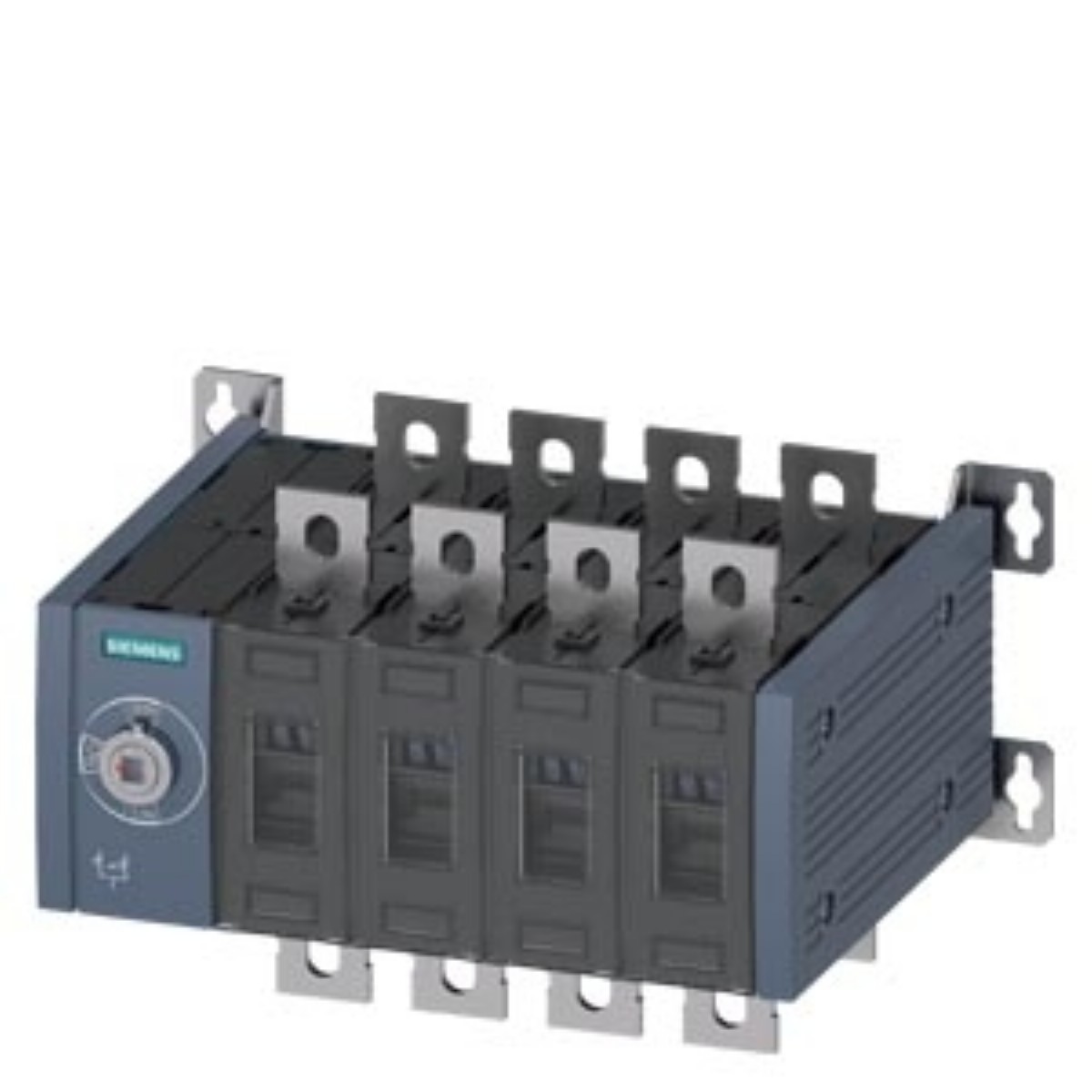

SENTRON, transfer switching equipment 3KC, manually operated, MTSE, size: 3, 4-pole, Iu: 200 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 200 A, Ie at AC-23 A at 690 V: 200 A, screw mounting, front operating mechanism, at the left end, without handle, busbar connection

Notlar

Birim fiyat 'Price on request' olan ürünler Industry MALL' dan satın alınamaz. Ürün kodunu kontrol ediniz. Ürün kodu doÄŸru ise sipariÅŸi için Siemens TR ilgili satış birimi ile temasa geçiniz.

M-CAD ve E-CAD (5) için resim galesi ve bilgiler

Mandatory Selectable Product (4)

Accessory (13)

3KC9301-1

Accessories for 3KC0 SZ 3 Direct operating mechanism, gray with cover for 3KC0 SZ3 3 and 4-pole contains 1 unit

3KC9301-2

Accessories for 3KC0 SZ 3 Direct operating mechanism yellow/red with cover for 3KC0 SZ3 3 and 4-pole contains 1 unit

3KC9318-0

Accessories for 3KC0 SZ 3 Connecting jumper for load-side connection 1-pole for 3KC0 SZ3 contains 1 unit

8UD1141-2AE21

Door-coupling rotary operating mechanism standard with tolerance compensation Size 100x 100, Shaft 8x 8, 300 mm, I-0-II, Complete unit Handle size 100 mm Accessory for 3KC0 size 3
